TV160 7th Generation TV Mainboard / Motherboard Tester for LCD TV Repair (V-by-One & LVDS)

TV160 (7th Generation) LVDS & V-by-One to HDMI Converter for TV Mainboard Testing

Overview

The TV160 7th Generation Converter is a professional testing tool designed for LCD TV mainboards (logic boards).
It converts LVDS (2K) and V-by-One (4K) signals into standard HDMI output, allowing technicians to test mainboards without installing an LCD panel.

This solution is widely used in TV repair workshops, on-site service, and factory production testing, helping reduce panel damage risk and improve efficiency.

Key Features

• Integrated input protection design
  Built-in protection circuit prevents damage even if panel power is mistakenly connected to the LVDS input.
  No external protection boards required.

• Excellent signal compatibility
  Supports both LVDS and V-by-One TV mainboard signals.

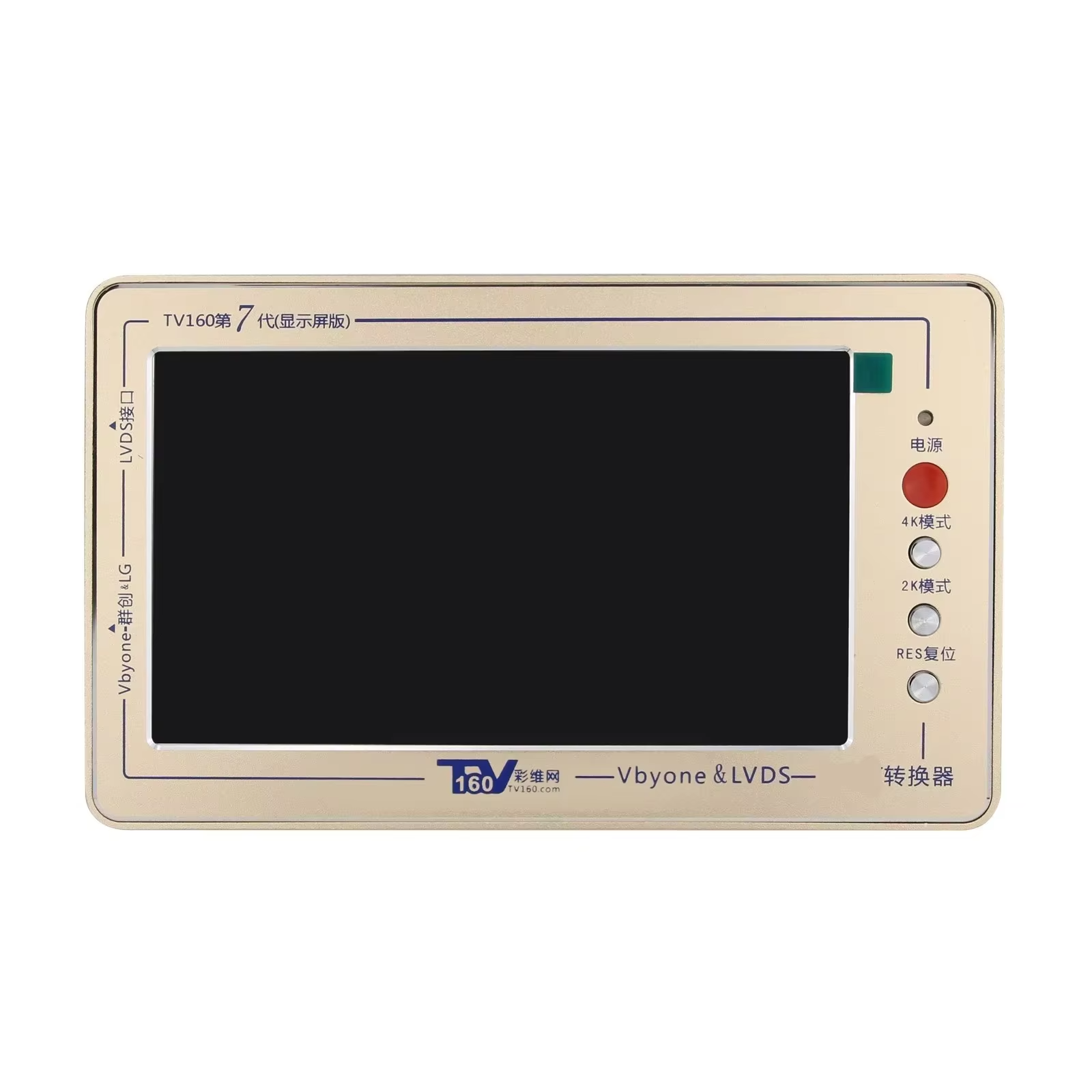

• Built-in 7-inch display
  Displays mainboard output image directly for quick diagnosis.

• HDMI output supported
  Outputs 1080P / 60Hz HDMI signal for external monitor or TV.

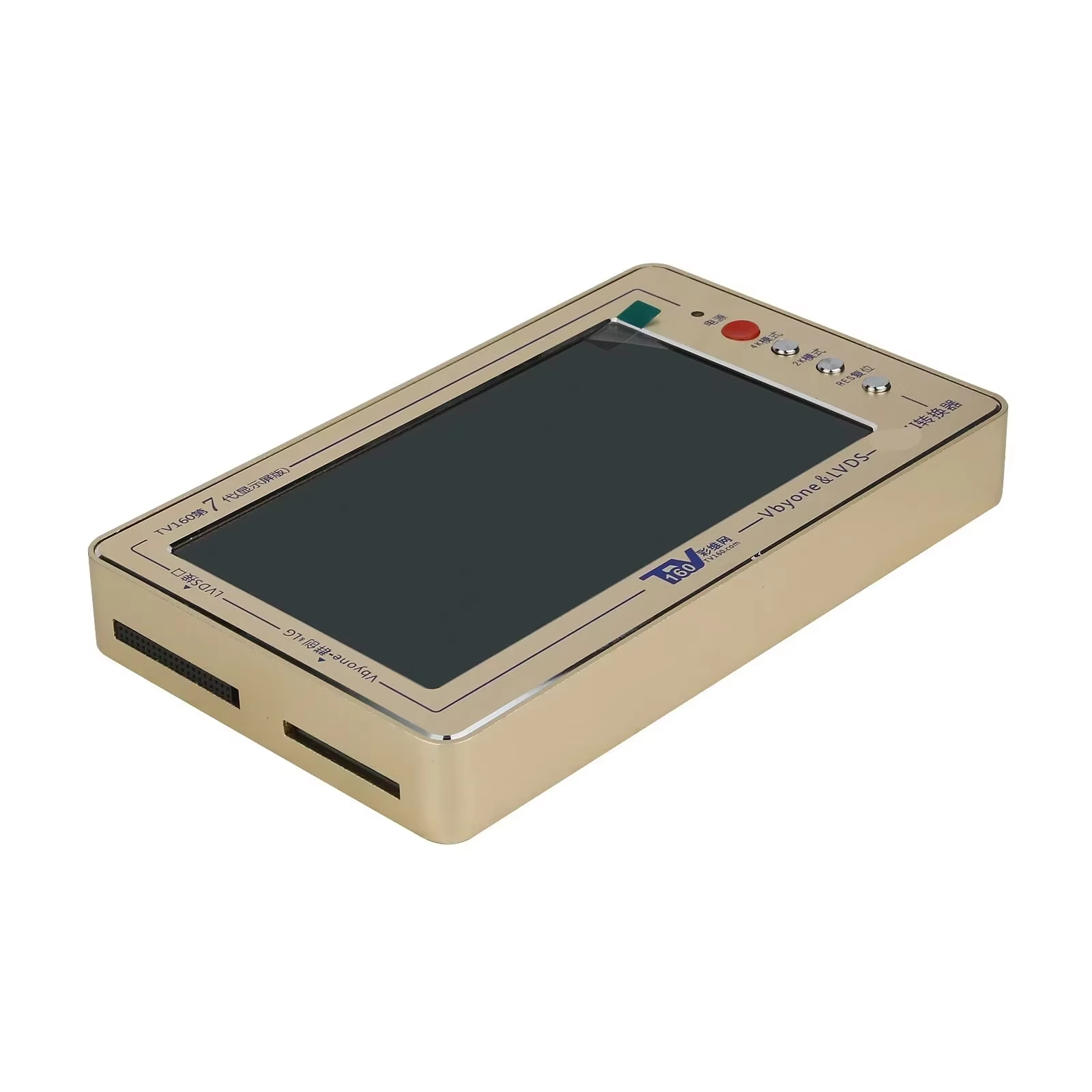

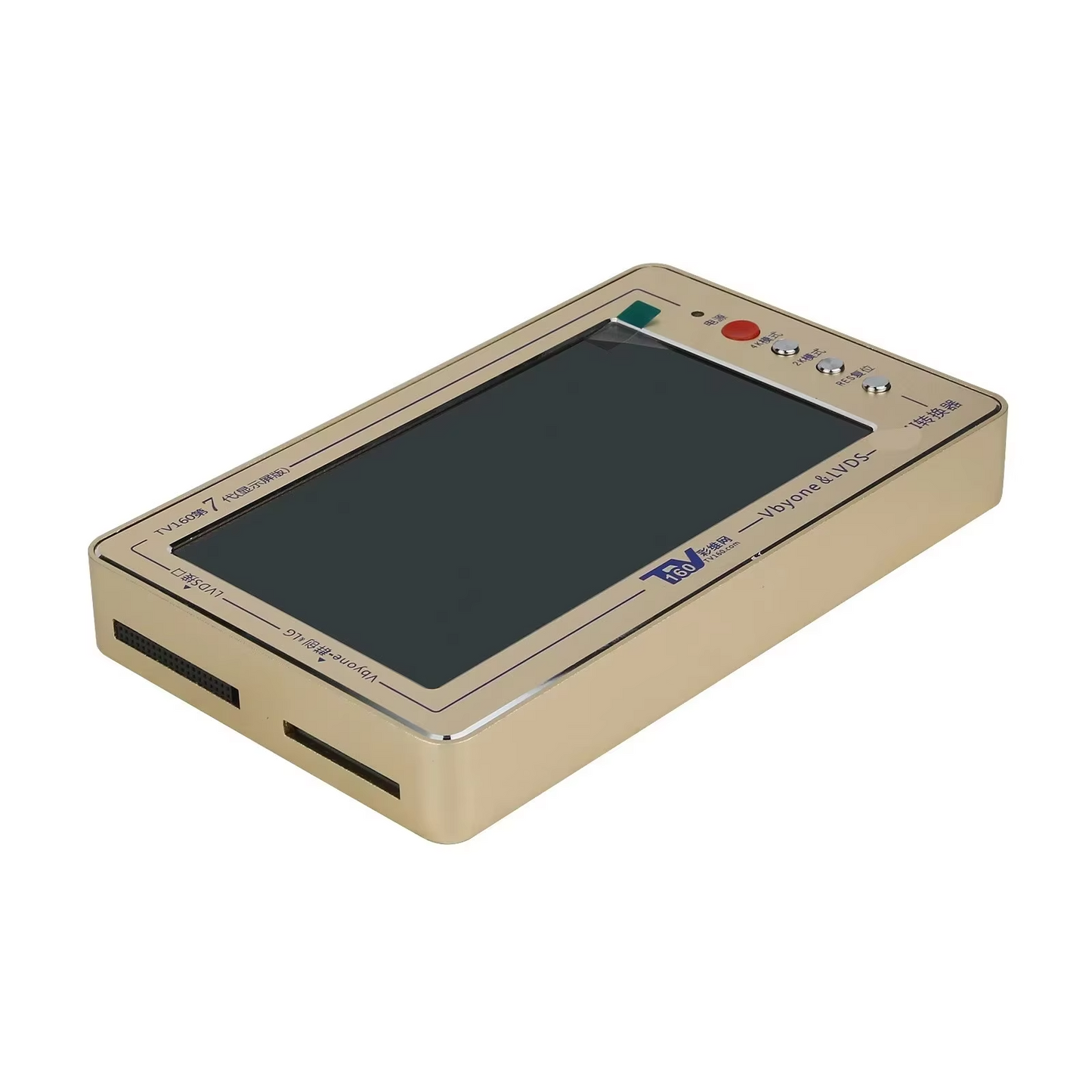

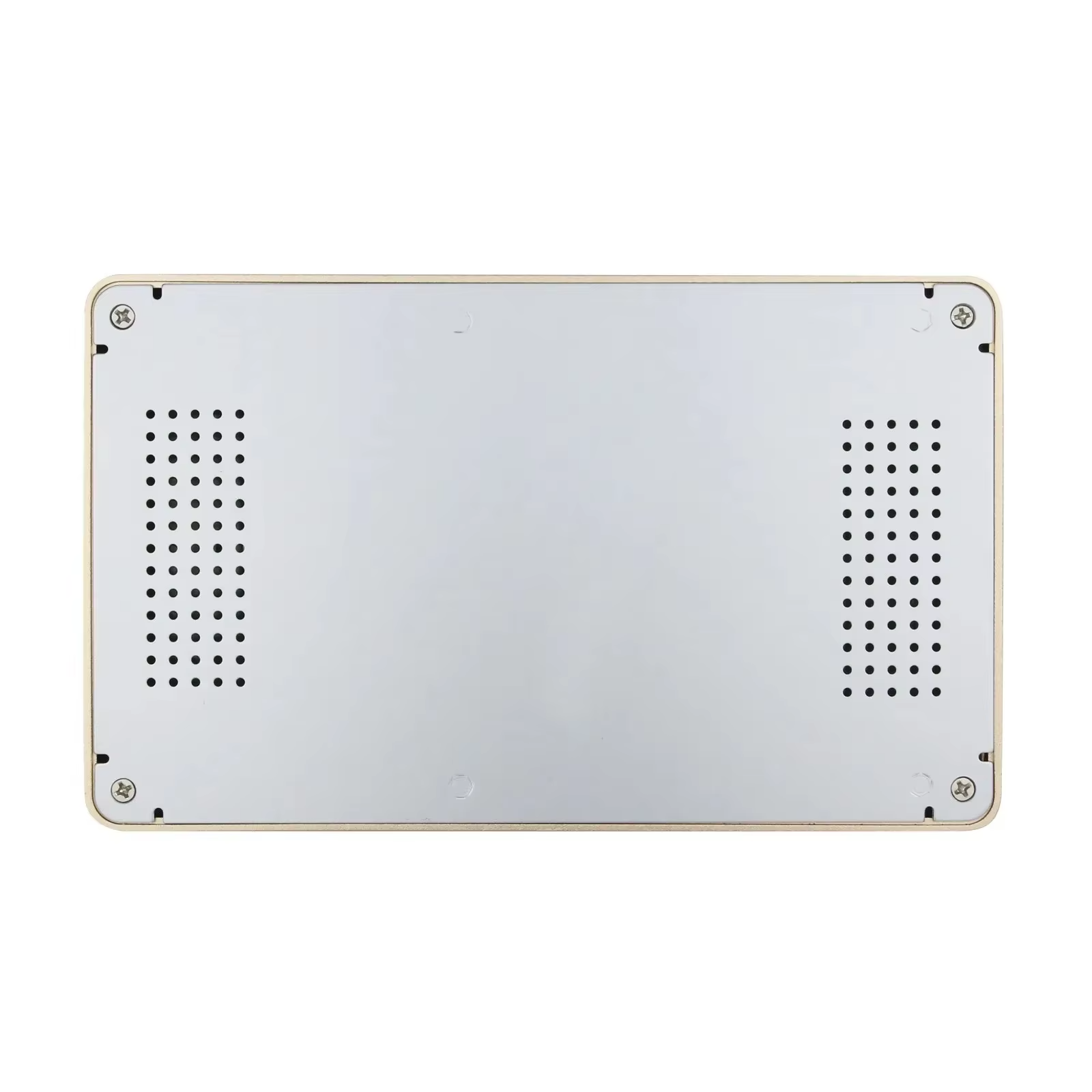

• Compact aluminum alloy housing
  Durable, portable, and suitable for on-site testing.

Supported Signals

LVDS (2K Mode)

• VESA / JEIDA standards

• 6-bit / 8-bit / 10-bit

• 60Hz / 120Hz / 240Hz

• Single-channel and dual-channel LVDS

• Compatible with different LVDS pin definitions

V-by-One (4K Mode)

• 4-lane / 8-lane / 16-lane

• 30Hz / 60Hz / 120Hz

• Compatible with most 4K TV mainboards

Operation

• Automatic signal recognition

• One-button switching between:

  • LVDS (2K mode)

  • V-by-One (4K mode)

Power Supply

• Input voltage: 5V – 12V

• Recommended adapter: 5–6V / ≥2A

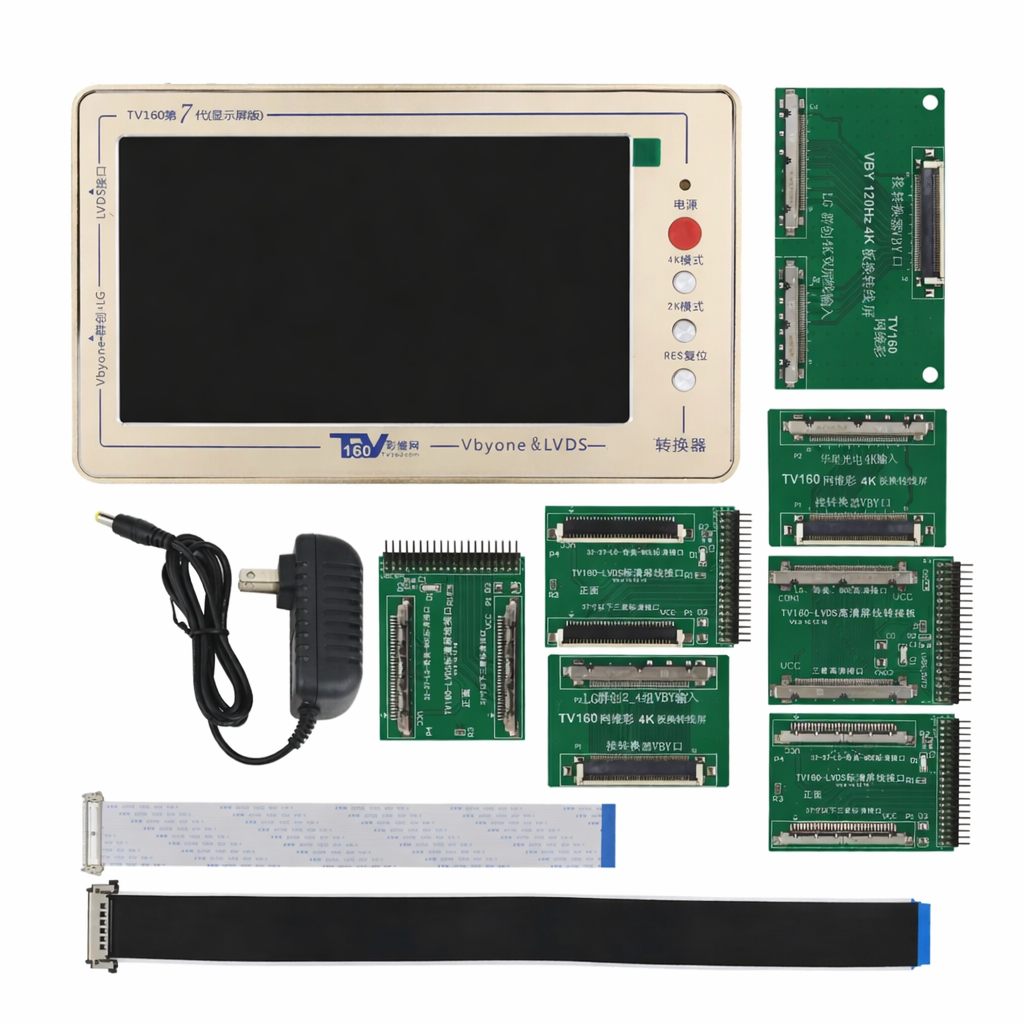

Package Includes

• TV160 main unit × 1

• Power adapter × 1

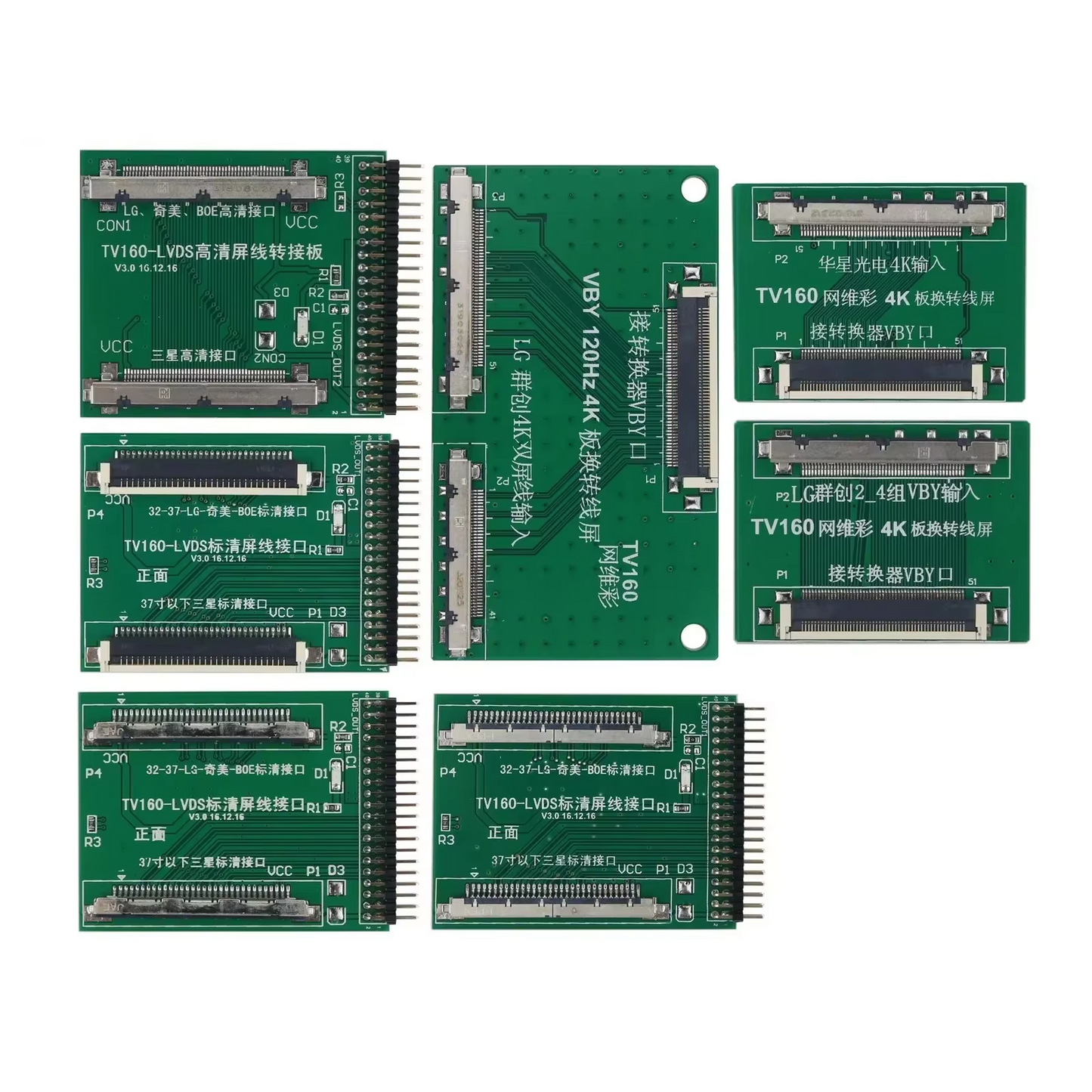

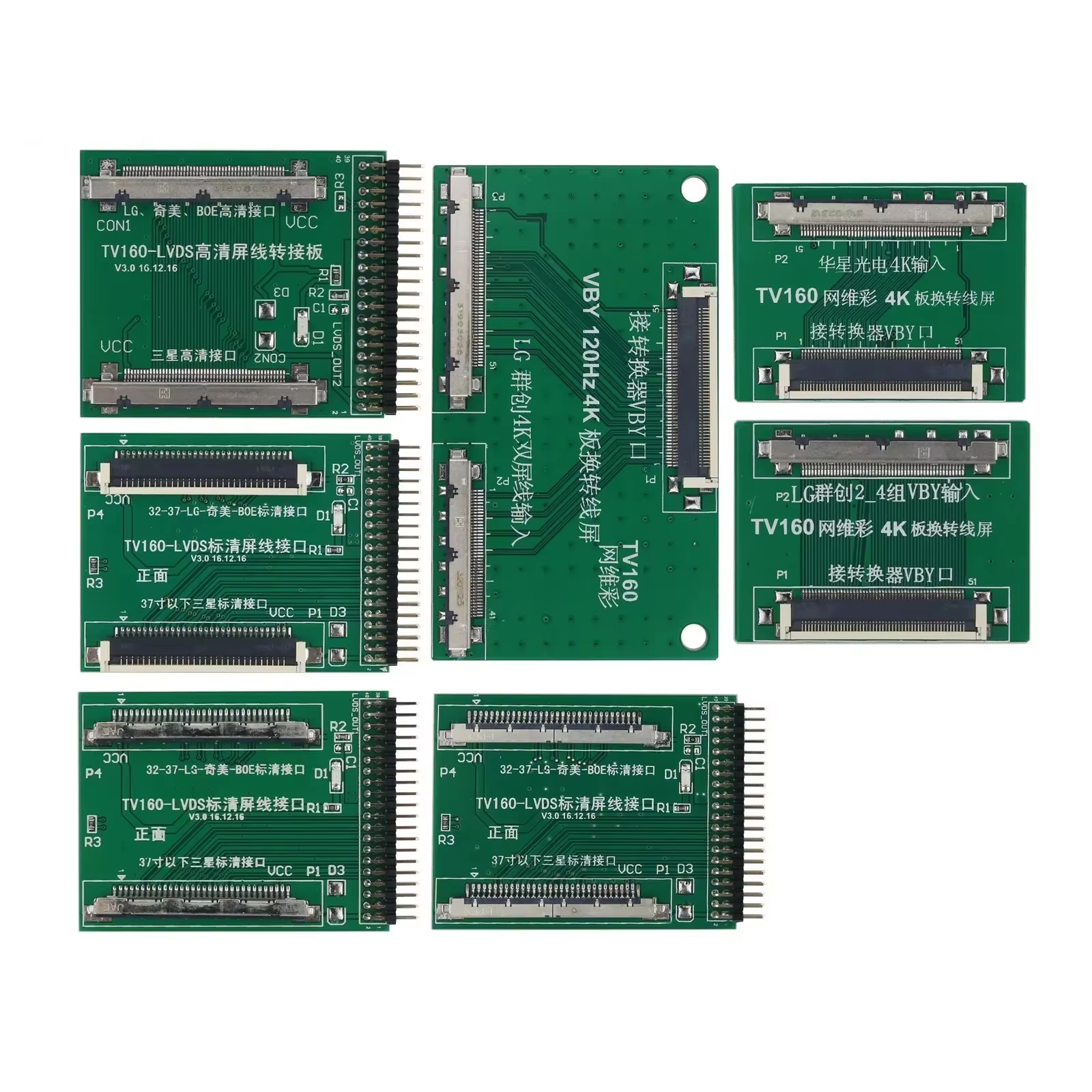

• LVDS adapter boards × 4

• V-by-One adapter boards × 3

Important Notice

This product is used for TV mainboard (logic board) testing only.
It is not designed for direct LCD panel testing.
